ISO Standard PU And PVC Safety Roller Guard Rail Rolling Barrier Guardrail
Product Introduction

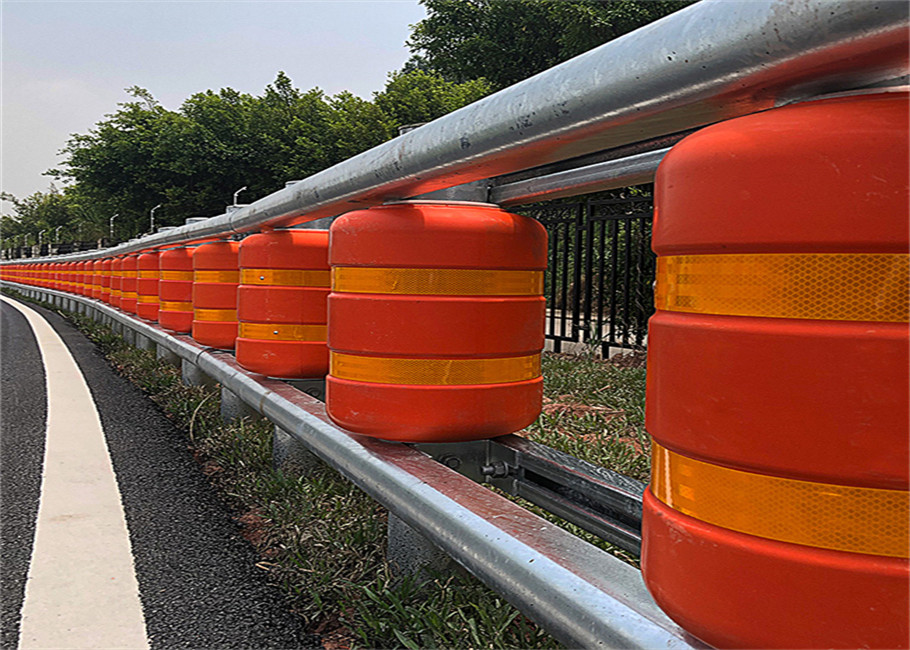

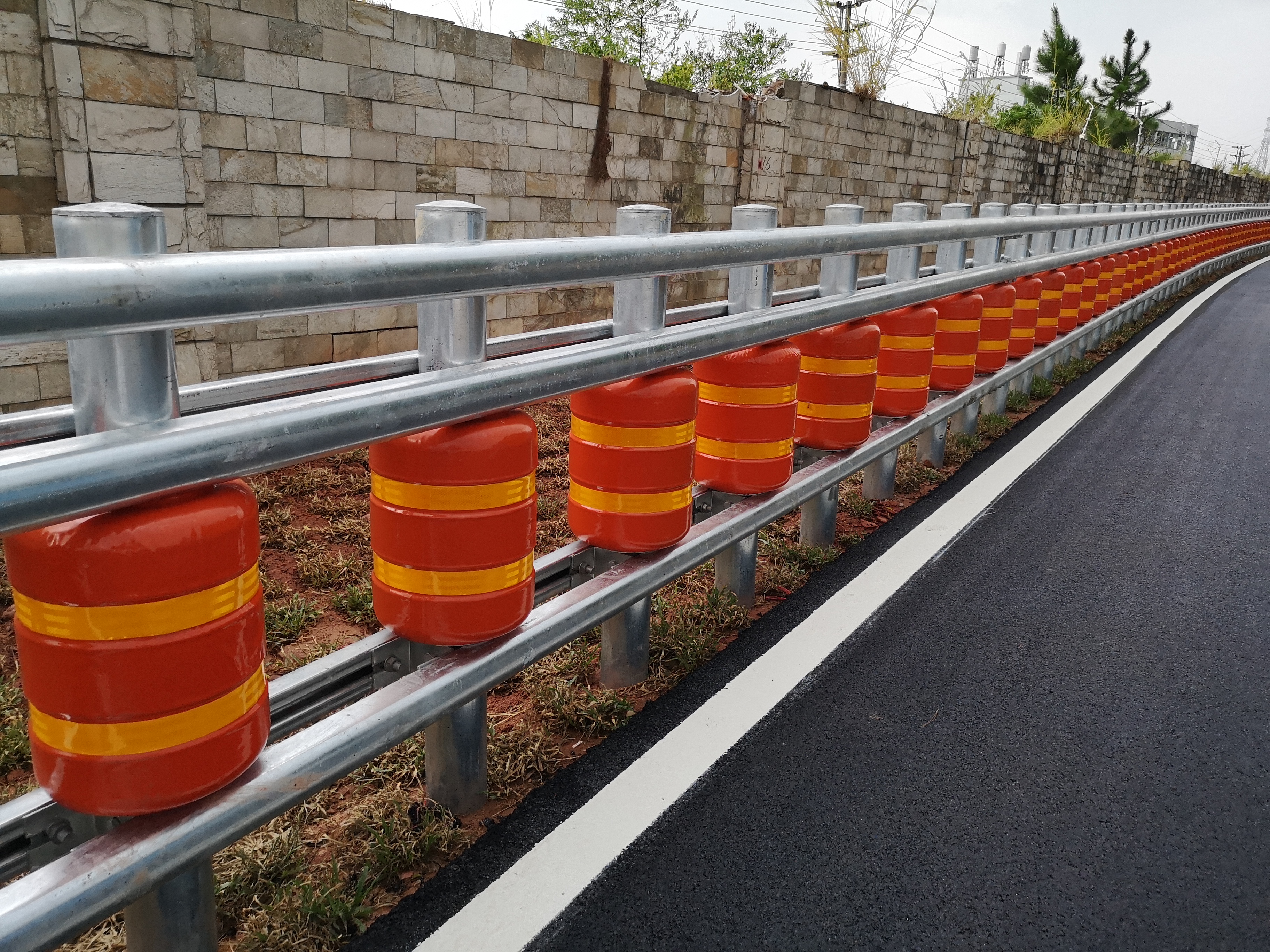

The new road rotating guardrail is also called the "anti-collision bucket guardrail" or " new type highway roller barriers " . It mainly adopts the "one column and four beams " method . By strengthening the performance and installation method of the column and the fence, it effectively prevents the car from crossing the fence and driving out of the driving lane.
Production Material

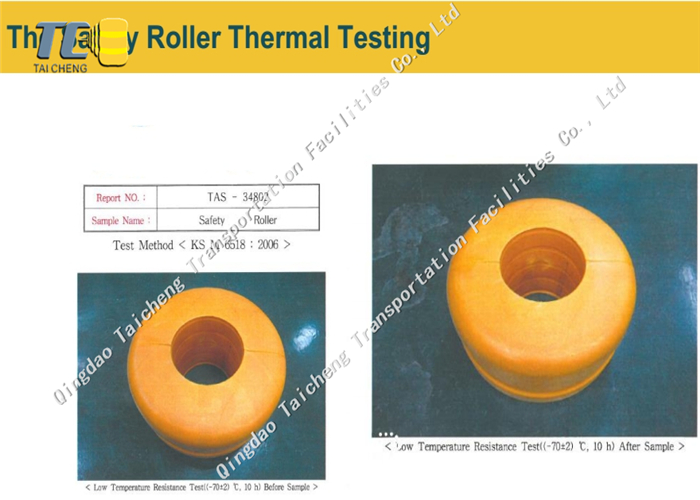

The anti-impact energy-absorbing rotating anti-collision barrel is made of high-tech polymer composite material---polyurethane , which is made in one time . Polyurethane material has high strength of polyethylene material and high elasticity of rubber material , so the barrel itself has high elasticity and anti-collision and wear-resistant characteristics, which can avoid being crushed when impacted, and effectively Protecting to the fence and the passengers.
Product Components And Specifications
The rotary anti-collision guardrail is composed of rotating barrel, beam, column, reflective strip, casing, rotating coil and connecting piece.

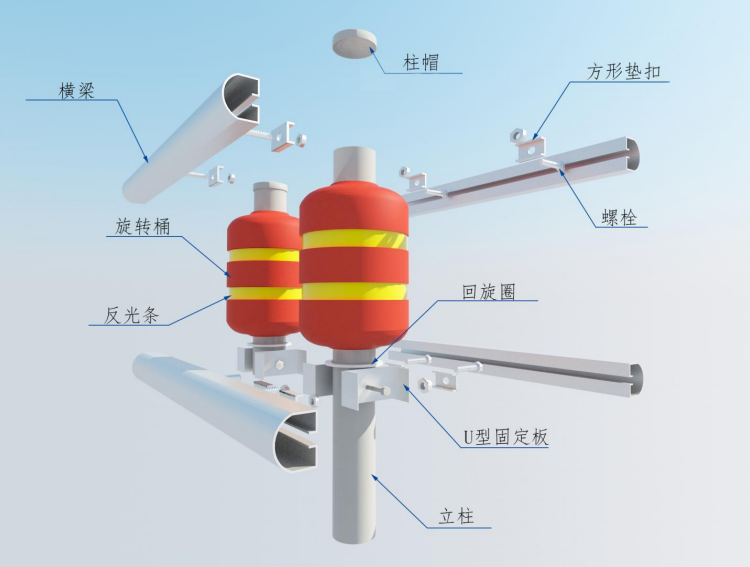

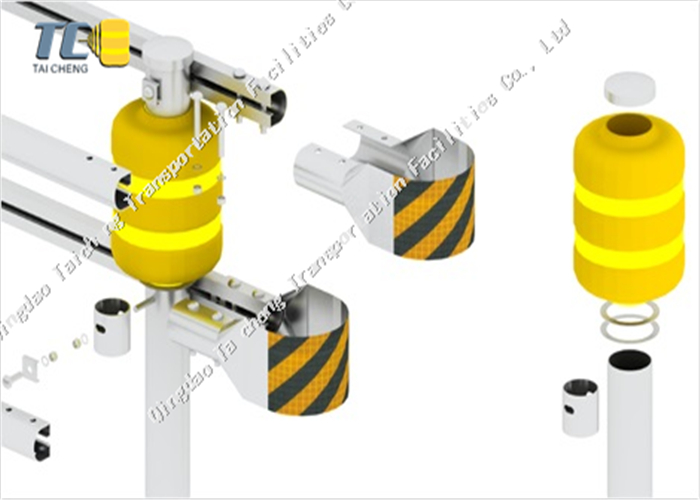

The exploded view is as follows:
| Products specification |
| Roller (royalty barrel) | H240xφ350mm,H270xφ350 |
| Post | φ140x2200x4.5mm |
| Cross beam | 100x80x4.0mm |
| Connecting rack | 430x84x70x4.0mm |
| U shape frame | 380x70x6.0mm |
| Turning circle | φ182xφ145x2.0mm |
| Square buckle | 46x64x4.0mm |
| Terminal | 1300x230x2.0mm |
| Bolts&Nuts | M20x60/120/140mm |
Rotary anti-collision guardrail constitutes the outline - the deviation of the outer dimensions of the rotating anti-collision guardrail member is allowed 5%

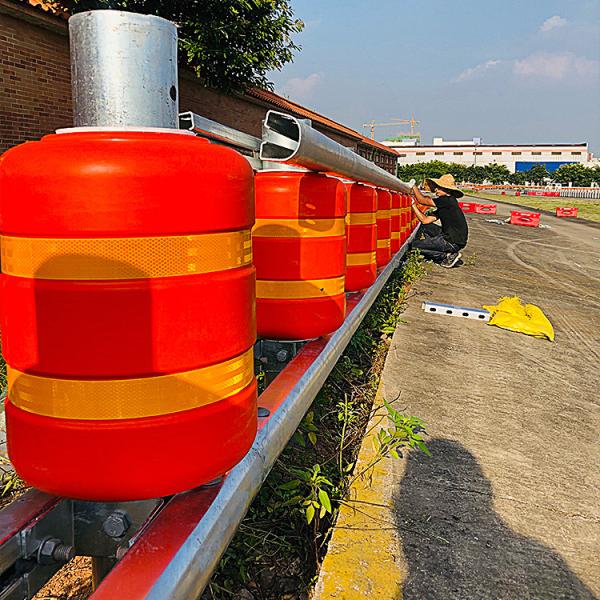

Easy to install
The new rotary anti-collision guardrail series adopts modular design, the whole
installation is simple and quick, no need for professional guidance, the installation is
safe and pollution-free, and the installation cost is low.
Product Application
Company Profile
Taicheng Transportation Independents research and development, the self-designed anti-shock energy-absorbing highway roller barriers( new rotary anti-collisionguardrail )broke the technical monopoly of Korean American countries, filled the market gap of China's rotary guardrail, and was praised by the industry as “China's guardrail technology milestone ”.
The product has more than 20 national patents, successfully passed the collision test of small cars (house cars), buses and large trucks in the highway test site of the Ministry of Communications, and the test results and collision data are at the international leading level.
