Dock And Ship Protection Type Marine Floating Pneumatic Fender

Brand Name : Henger

Model Number : 016

Certification : CCS BV certification ISO17357 ISO9001

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50pcs week

Delivery Time : 5days

Packaging Details : paller

Color : Black/As Requirements

Material : Natural Rubber

Application : STD,STS,Ships and Boats,Marine/quay/dock/boat

Name : pneumatic rubber fender

Warranty period : 24 months

Packing : Nude Packing/As Requirement

Diameter : 0.5~4.5m

Contact Now

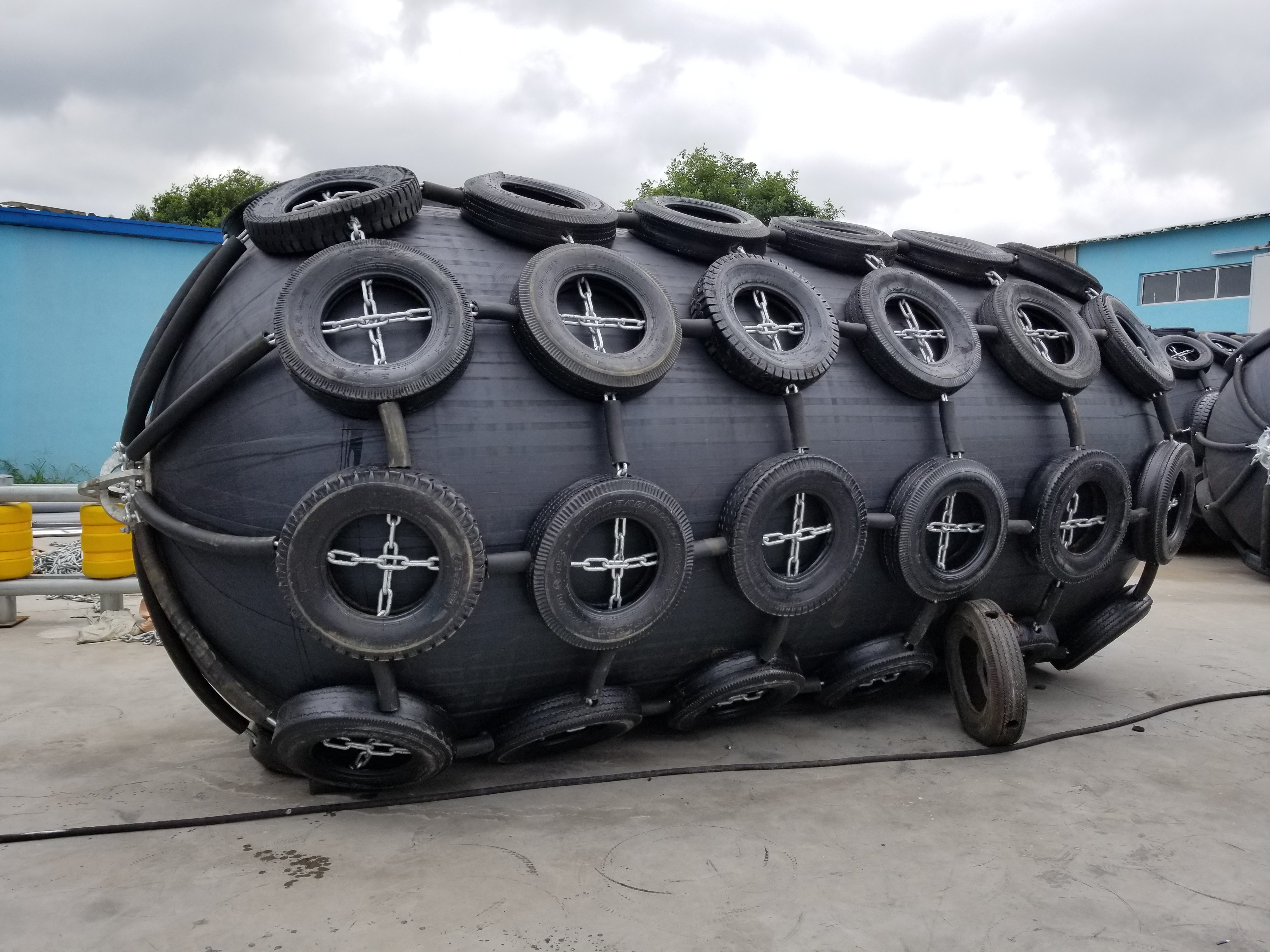

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Pneumatic Rubber Fender Features

Unique Design of Henger Pneumatic Rubber Fender

Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.

Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

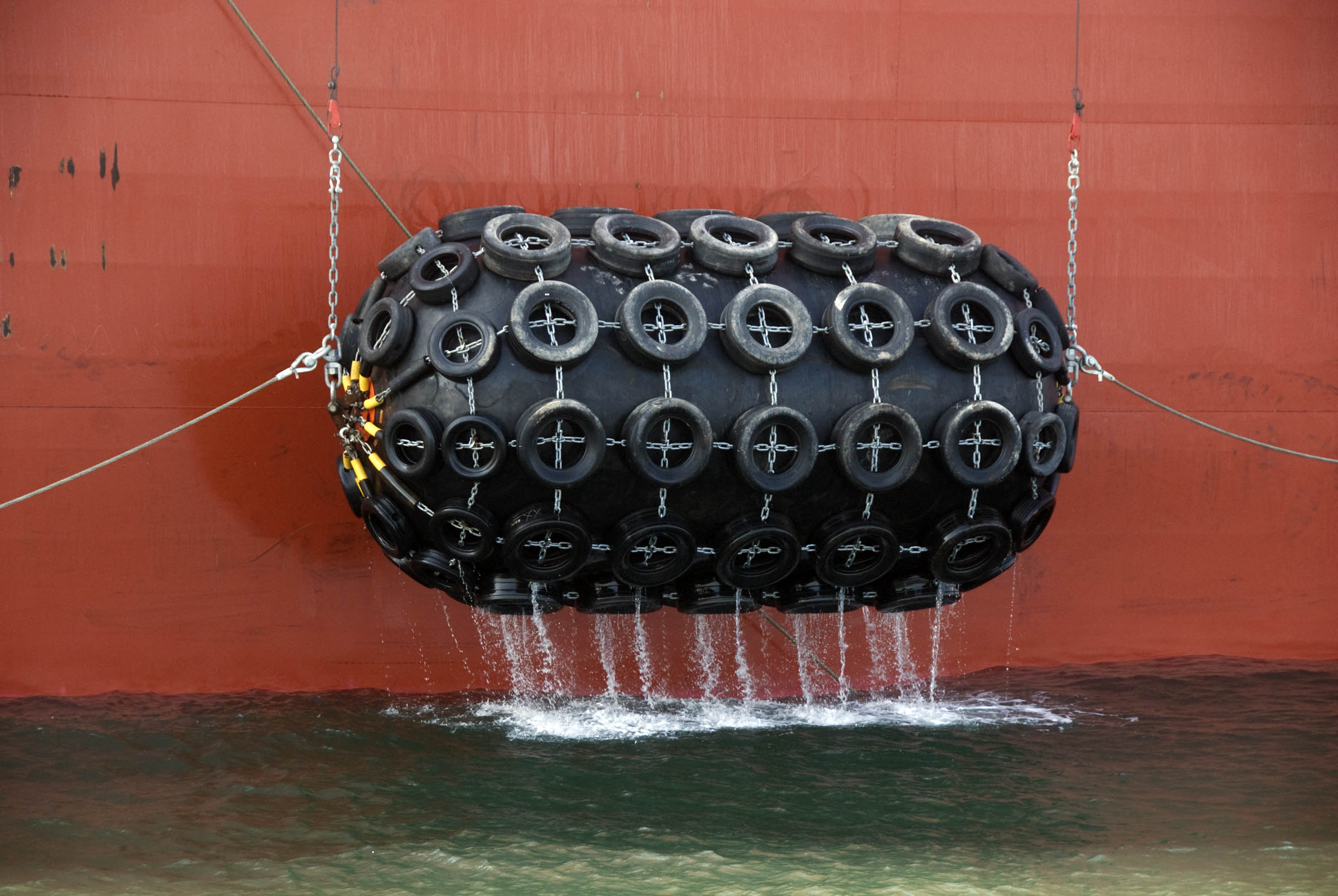

Dock And Ship Protection Type Marine Floating Pneumatic Fender

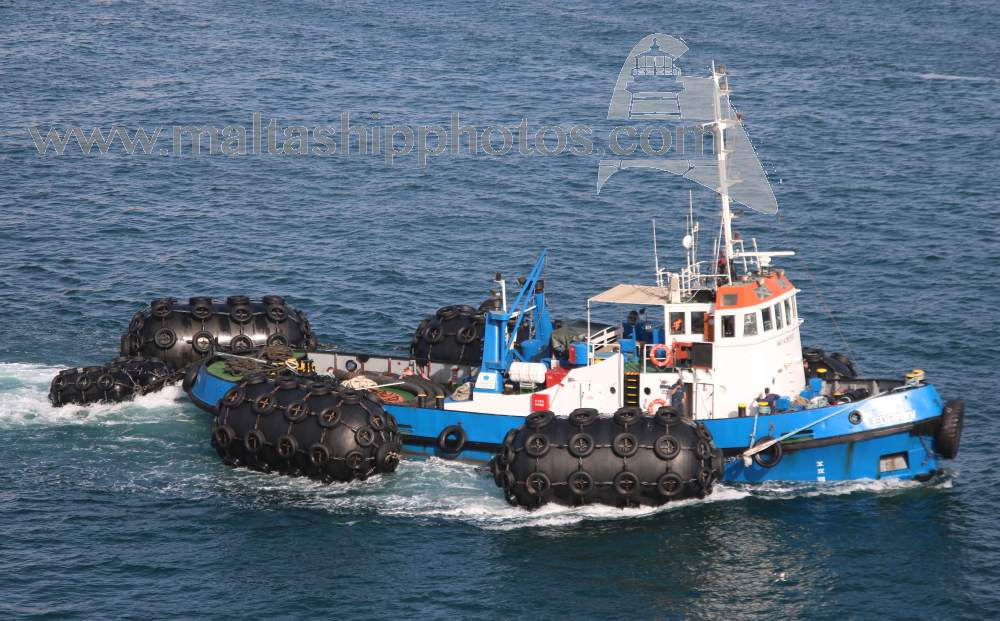

Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations

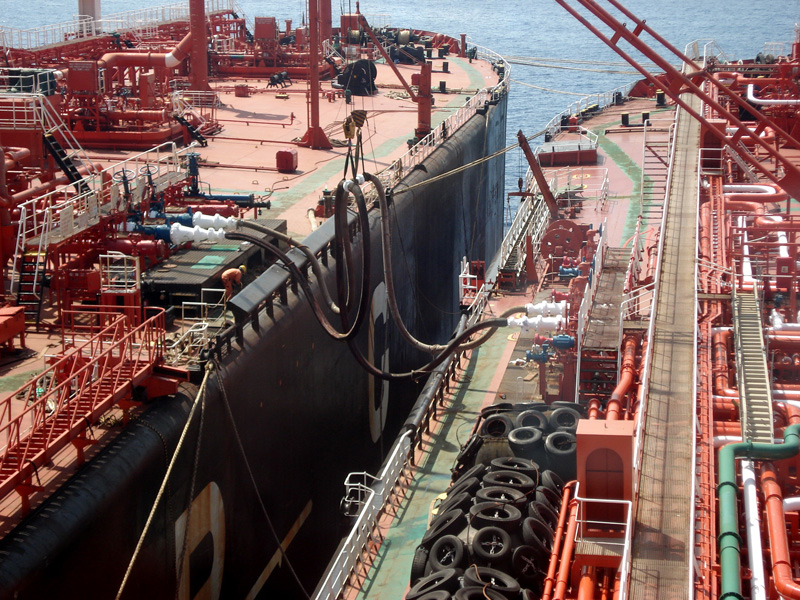

6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

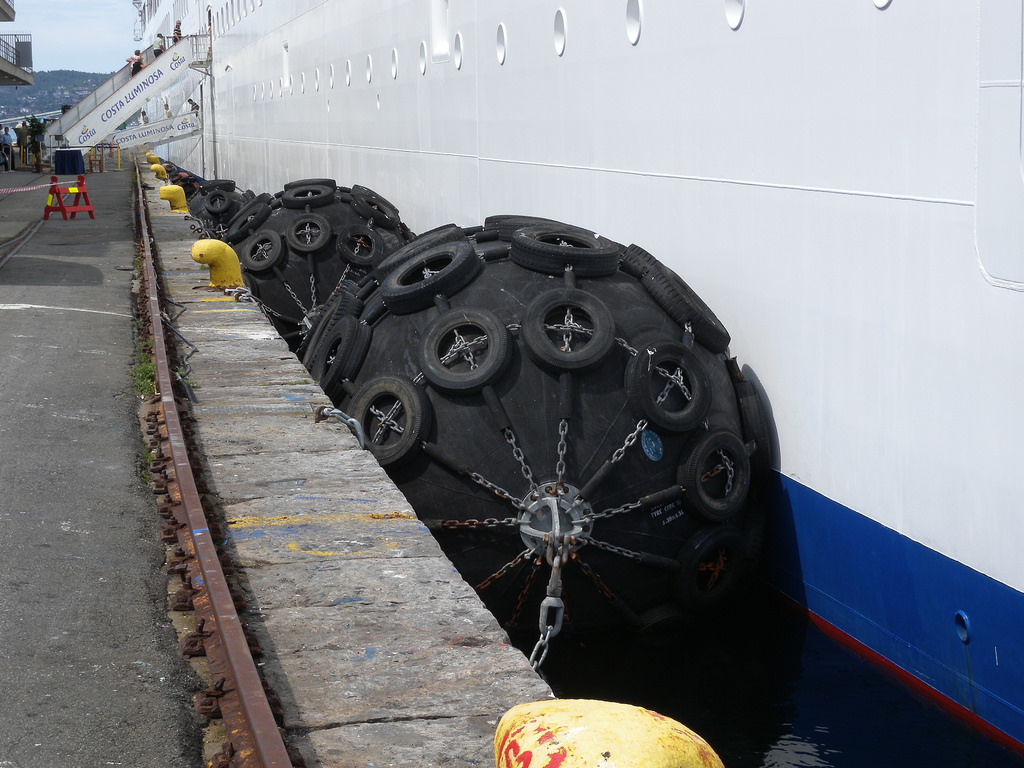

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Pneumatic rubber fender Parameter

Fender Size Compression Amount(60%)

Noumenon Weight (kg)

Weight with Protective Jacket

(kg)

D

(mm)

L

(mm)

Reaction

(KN)

Energy Absorption

(KNM)
500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000
  • There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.
  • Pneumatic rubber fender size could be customized according to customer requirement.
  • All accessories could be customized according to customers’ requirement or drawings.

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)
200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5
For Large-tonnage Ship

Product drawing

Dock And Ship Protection Type Marine Floating Pneumatic Fender

Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Dock And Ship Protection Type Marine Floating Pneumatic Fender
