Ship Launching Lifting Balloon Docking Marine Rubber Airbags
Introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Specifications
| Diameter | Working Pressure | Working height | Bearing capacity per unit length |
| KN/m | Ton/m |
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 |
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 |
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 |
| 0.7m | 163.43 | 16.66 |
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 |
| 0.9m | 155.59 | 15.86 |
| 0.8m | 172.85 | 17.62 |
| 0.7m | 190.22 | 19.39 |
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 |
| 1.0m | 157.16 | 16.02 |
| 0.9m | 172.85 | 17.62 |
| 0.8m | 188.64 | 19.23 |
Application

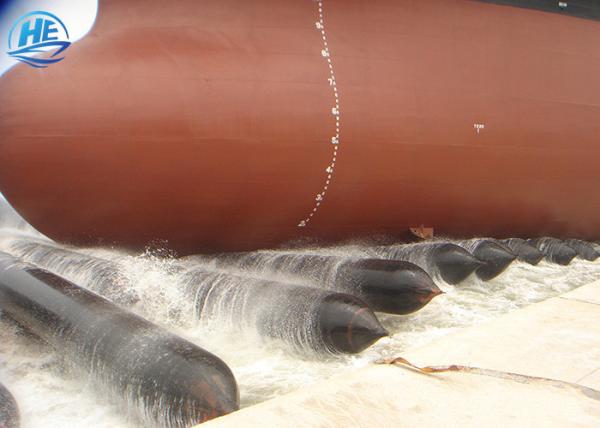

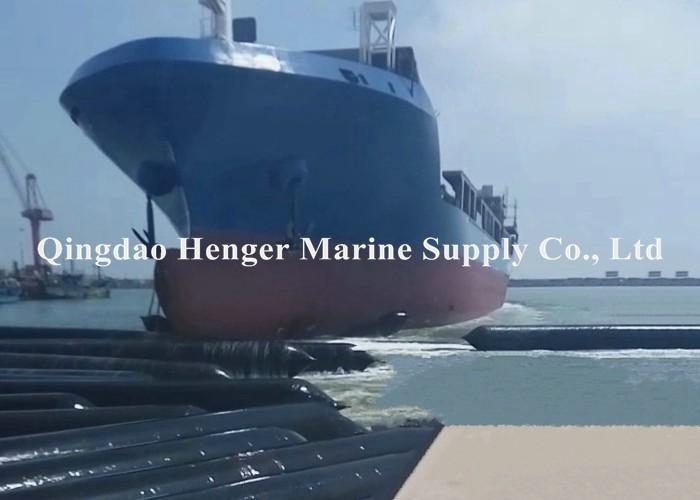

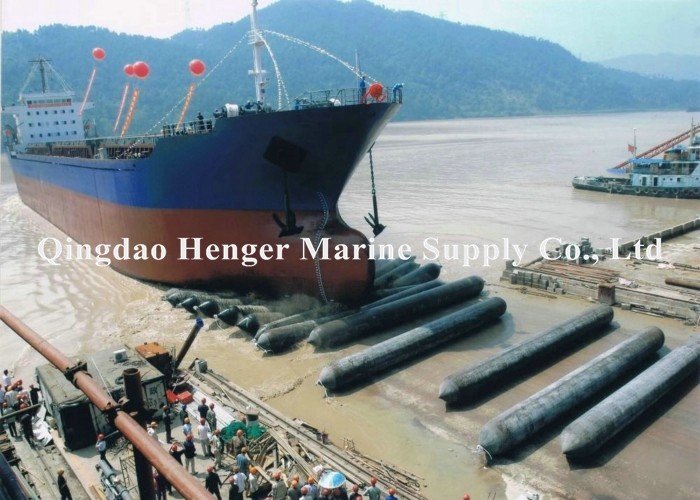

- Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

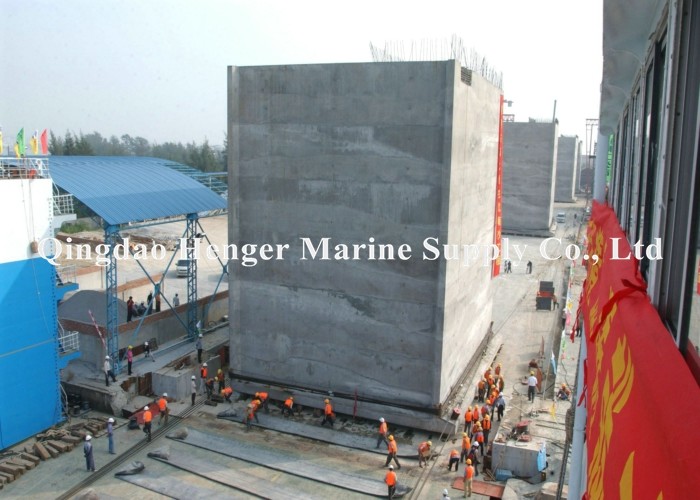

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

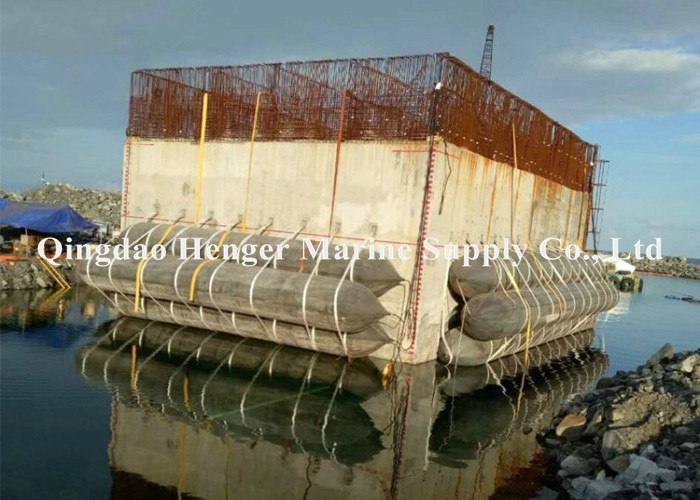

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Features
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
FAQ
FAQ ABOUT MARINE RUBBER AIRBAGS
1."Can I use marine rubber airbags for both ship launching and docking ?"
Answer: Yes, our rubber airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.now.
2. "What's the advantage of your marine rubber airbags compared to slipway ?"
Answer:
1) our marine rubber airbags are much cheaper than slipway,but also reusable, it can save money and labor
2) our marine rubber airbags are moveable , it can save time and more flexible
3) our rubber airbags are much soft than slipway,there's no harm to the bottom of the ship.
3. "I have ships but don't know how to choose rubber airbags size ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
4."I want to try your marine rubber airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our rubber airbags. We also have video . And we can go to your company to teach you using rubber airbags on site.
5."What's your MOQ of marine rubber airbags?"
Answer: Our MOQ is 1PC.
6."What's the lifespan of your marine rubber airbags?"
Answer: Designed lifespan of our marine rubber airbags is 8 to 10 years.
7."What's the warranty period of your marine rubber airbags?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new marine rubber airbags for you if it proved to be our quality problem.
