Inflatable Heavy Lifting Marine Rubber Airbag
Marine Rubber Airbag Introduction
Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.
Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies.
Marine Rubber Airbag Advantages of Concrete Pontoon
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
Marine Rubber Airbag Specifications
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Medium Pressure (4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
| High Pressure (6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
Some normal sizes, customized sizes are also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Rubber Airbag Application
- Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Product Tags:
|
|

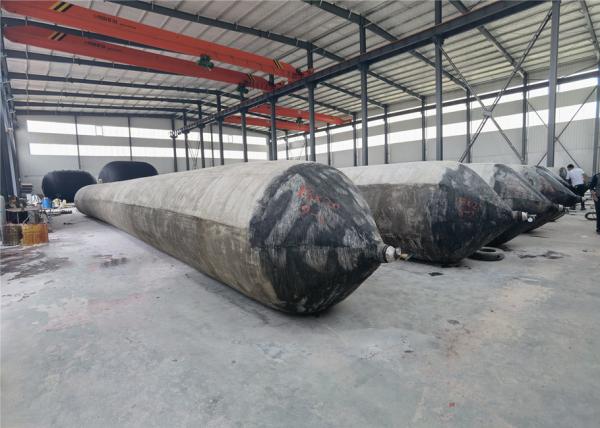

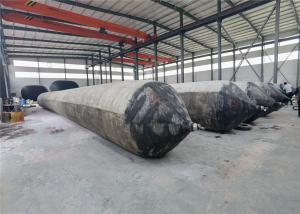

Inflatable Heavy Lifting Marine Rubber Airbag Pneumatic Images
|
